| Funkcijos |

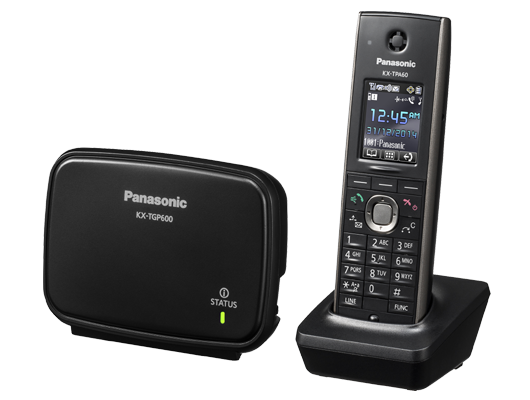

KX-TGP600 |
| VoIP Support |
IETF SIP version 2 (RFC3261 and companion RFCs) |
Yes |
| BroadWorks / BroadSoft Inc. |
Yes |
| Asterisk / Digium, Inc. |
Yes |
| Voice Codec |
Wideband |
G.722 /G.722.2 (AMR-WB) |
| Narrowband |
G.711a-law / G.711μ-law / G.729a |
| Network |
10 / 100 base-T auto MDI / MDIX Ethernet LAN port |
1 |
| IP Stack mode |
IPv4, IPv6, IPv4/IPv6 Dual |
| Security |
Secure RTP |
Yes |
| SIPS/SIP-TLS |
Yes |
| Provisioning |
HTTP / HTTPS / FTP / TFTP and Local / Remote WEB configuration |
Yes |
| Disabling provisioning feature of local operation |
Yes |
| QoS Support |
DSCP |
Yes |
|
|
| IEEE 802.1q |
Yes |
| TOS |
Yes |
| Keys and Indications |
Status indicator (Base unit) |
LED |
| LCD (Base unit / Bundled handset KX-TPA60 |
No / 1.8 inch colour LCD |
| RF-System |
Wireless interface |
DECT |
| Frequency Band |
1.88 GHz - 1.90 GHz |
| Phone Features |
Multiple Handset |
Up to 8 |
| Multiple lines |
Up to 8 |
| Simultaneous Voice Calls |
Narrowband: Talk 8 + Conference 2 |
| Wideband: Talk 4 + Conference 2 |
| Handset Select for Receiving Call |
Yes |
| Handset and Number Select for Making Call |
Yes |
| Redial |
Yes |
| Do Not Disturb |
Yes |
| Anonymous Call (CLIR) |
Yes |
| Anonymous Call Rejection |
Yes |
| Calling Party Name and Number Presentation (CLIP, CNIP) |
Yes |
| DTMF Dialing During Call |
Yes |
| 3-Party Conferencing |
Yes |
| Call Transfer |
Yes |
| Call Hold |
Yes |
| Call Forward Unconditional / User Busy / No Answer |
Yes |
| Call Waiting |
Yes |
| Phonebook (KX-TPA60) |
Up to 500 |
| Call log (Incoming / Outgoing / Missed)(KX-TPA60) |
20 / 20 / No (Included incoming call log) |
| Distinctive Ringing |
Yes |
| Ringtone Selection |
Yes |
| Power supply |
Base unit |
AC Adaptor, PoE (IEEE 802.3af) |
| Charger |
AC Adaptor |
| Power Consumption |
Base unit |
Standby: Approx. 2.3 W |
| Maximum: Approx. 2.6 W |
| Charger |
Maximum: Approx. 1.6 W |
| Battery (Bundled handset K X-TPA60) |
|
630 mAh Ni-MH 2 x AAA |
| Talk Time |
|
Up to 11 hours |
| Standby Days |
|
Up to 200 hours |
| Operating Environment |
|
0 °C - 40 °C (32 °F - 104 °F) |
|
20 % - 80 % relative air humidity (dry) |
| Dimensions (W x D x H mm) |
Base unit |
Approx. 118.7 x 45.0 x 88.1 |
| Bundled handset KX-TPA60 |
Approx. 47.8 x 25.5 x 153.2 |
| Charger cradle for KX-TPA60 |
Approx. 71.6 x 75.4 x 42.3 |
| Packing contents |
|
Base unit x 1, Handset (KX-TPA60) x 1, AC adaptor x 2, Battery (Ni-MH AAA) x 2, Charger cradle x 1, LAN cable x 1, Belt clip x 1, Screw for wall hangings x 2 |
| Weight |
Base |
126 g |
| Handset |
117 g |
| Charger |
49 g |
