KX-HDV230NE - SIP telefonas

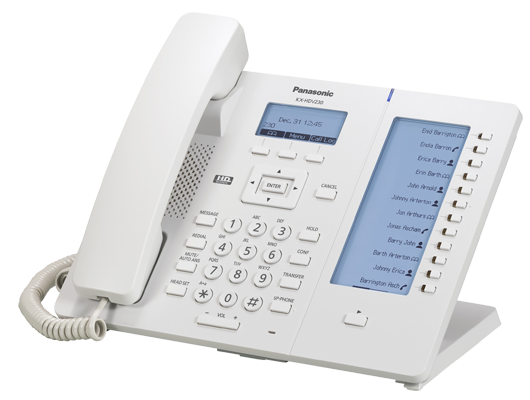

Panasonic KX-HDV230NE

Panasonic KX-HDV230NE

IP telefonas

  • 6 SIP sąsajos (accounts)
  • 2.3 colių, 132 x 64 pikselių grafinis ekranas su pašvietimu
  • HD garso kokybė (G.722)
  • 3-šalė konferencija
  • Kontaktų knygutė iki 500 įrašų
  • Patvirtintos Broadsoft UC one
  • 2 Ethernet 10/100/1000 Mbps portai, PoE
  • PoE (IEEE 802.3af)
  • XML naršyklė
  • 24 funkciniai / linijų klavišai
  • Automatinis konfigūravimas (Plug and Play)
  • Pritaikytas kabinti ant sienos
Aksesuarai

Maitinimo adapteris

KX-A424CE
  • Reikalingas jei nera PoE
Kaina11.00€ / 37.98 Lt

DSS consolė

KX-HDV20NE
Kaina91.00€ / 314.20 Lt

DSS consolė

KX-HDV20NEB
Kaina91.00€ / 314.20 Lt
Techniniai duomenys
Funkcijos KX-HDV230
Display LCD Display Monochrome Graphical
LCD Size 132 × 64 pixel 2.3 inch Graphical LCD
LCD Contrast 6 levels
LCD Backlight On/Auto/Off
Install Options Desk Mount Tilt Yes – 2 positions
Wall Mount KX-A440 (Included)
Power Adaptor KX-A422 (optional)
Audio Features Handset, Speaker, Headset Volume 8 levels (includes echo cancellation and distortion prevention)
Ringtones 27
Ringer Volume 8 levels + Off
Headset Port RJ9 jack
Electronic Hook Switch Control Port 3.5 mm
Built-in Bluetooth® -
Audio Codec G.711a-law / G.711µ-law / G.722 (wideband) / G.729a
HD Voice Yes
Speaker Phone Yes (Full Duplex)
Keys Programmable Keys 24
Software Features Phone Book (Local) 500
LDAP Remote Phonebook Yes
XML Remote Phonebook Yes
Call Log Entries 30 incoming calls + 30 outgoing calls
Conferencing 3 parties (within terminal – multi-party dependent on server)
XML Application Yes
Music on Hold Supplied by Host Service (PBX / SIP Server)
Memory
IP Features SIP Accounts 6
SIP Compatibility RFC 3261 Standard SIP Server, Asterisk, Broadsoft, CommuniGate Pro, Panasonic IP PBX
IP Version IPv6 / IPv4
DHCP Client Yes
DNS Yes
HTTP Yes
HTTPS Yes
SNTP Client Yes
VLAN (802.1q) Yes
QoS (DiffServ) Yes
Configuration Plug and Play Configuration Server based configuration, TR-069
Manual Configuration Internal web Configurator, Local (LCD based) network configuration
Interface Ethernet Ports 2
Ethernet Interface 10/100/1000 Mbps
PoE (Power over Ethernet) Yes
Bluetooth -
USB
SD Card Slot
Power Consumption PoE
Stand-by: approx. 3.1 W (ECO mode off), 2.9 W (ECO mode on)
Talking: 3.2 W (ECO mode off), 3.0 W (ECO mode on)
Max: 4.2 W
AC Adaptor
Stand-by: approx. 2.8 W (ECO mode off), 2.1 W (ECO mode on)
Talking: 2.9 W (ECO mode off), 2.2 W (ECO mode on)
Max: 4.2 W
Operating Environment 0 °C - 40 °C (32 °F - 104 °F)
Dimensions (Width x Depth x Height; handset on cradle, excluding the handset, stand attached) High position: 252 mm × 179 mm × 188 mm
Low position: 252 mm × 187 mm × 154 mm
Weight (with handset,handset cord and stand) 1030 g
