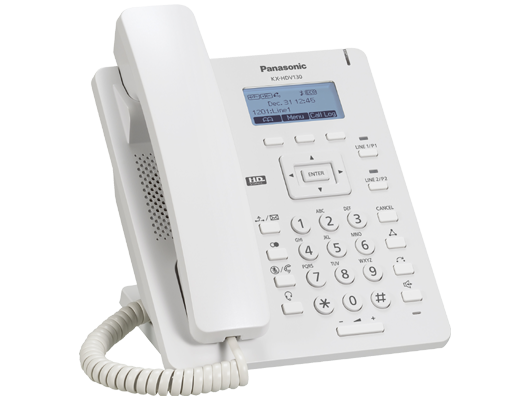

KX-HDV130NE - SIP telefonas

Panasonic KX-HDV130NE

Panasonic KX-HDV130NE

IP telefonas

  • 2 SIP sąsajos (accounts)
  • 2.3 colių, 132 x 64 pikselių grafinis ekranas su pašvietimu
  • HD garso kokybė (G.722)
  • 3-šalė konferencija
  • Kontaktų knygutė iki 500 įrašų
  • Patvirtintos Broadsoft UC one
  • 2 Ethernet 10/100 Mbps portai, PoE
  • XML naršyklė
  • 2 funkciniai / linijų klavišai
  • Automatinis konfigūravimas (Plug and Play)
  • Pritaikytas kabinti ant sienos
Aksesuarai

Maitinimo adapteris

KX-A423CE
  • Reikalingas jei nera PoE
Kaina4.00€ / 13.81 Lt

Wall Mount Kit (baltas)

KX-A440X
Kaina4.00€ / 13.81 Lt

Wall Mount Kit (juodas)

KX-A440XB
Kaina4.00€ / 13.81 Lt
Techniniai duomenys
Funkcijos KX-HDV130
Display LCD Display Monochrome Graphical
LCD Size 132 × 64 pixel 2.3 inch Graphical LCD
LCD Contrast 6 levels
LCD Backlight On/Auto/Off
Install Options Desk Mount Tilt Yes – 2 positions
Wall Mount KX-A440 (optional)
Power Adaptor KX-A423 (optional)
Audio Features Handset, Speaker, Headset Volume 8 levels (includes echo cancellation and distortion prevention)
Ringtones 27
Ringer Volume 8 levels + Off
Headset Port RJ9 jack
Electronic Hook Switch Control Port -
Built-in Bluetooth® -
Audio Codec G.711a-law / G.711µ-law / G.722 (wideband) / G.729a
HD Voice Yes
Speaker Phone Yes (Full Duplex)
Keys Programmable Keys 2
Software Features Phone Book (Local) 500
LDAP Remote Phonebook Yes
XML Remote Phonebook Yes
Call Log Entries 30 incoming calls + 30 outgoing calls
Conferencing 3 parties (within terminal – multi-party dependent on server)
XML Application Yes
Music on Hold Supplied by Host Service (PBX / SIP Server)
Memory
IP Features SIP Accounts 2
SIP Compatibility RFC 3261 Standard SIP Server, Asterisk, Broadsoft, CommuniGate Pro, Panasonic IP PBX
IP Version IPv6 / IPv4
DHCP Client Yes
DNS Yes
HTTP Yes
HTTPS Yes
SNTP Client Yes
VLAN (802.1q) Yes
QoS (DiffServ) Yes
Configuration Plug and Play Configuration Server based configuration, TR-069
Manual Configuration Internal web Configurator, Local (LCD based) network configuration
Interface Ethernet Ports 2
Ethernet Interface 10/100 Mbps
PoE (Power over Ethernet) Yes
Bluetooth -
USB
SD Card Slot
Power Consumption PoE
Stand-by: approx. 2.2 W (ECO mode off), 1.9 W (ECO mode on)
Talking: 2.3 W (ECO mode off), 2.0 W (ECO mode on)
Max: 2.8 W
AC Adaptor
Stand-by: 2.0 W (ECO mode off), 1.3 W (ECO mode on)
Talking: 2.1 W (ECO mode off), 1.4 W (ECO mode on)
Max: 2.8 W
Operating Environment 0 °C - 40 °C (32 °F - 104 °F)
Dimensions (Width x Depth x Height; handset on cradle, excluding the handset, stand attached) High position: 167 mm x 165 mm x 148 mm
Low position: 167 mm x 173 mm x 115 mm
Weight (with handset,handset cord and stand) 691 g
